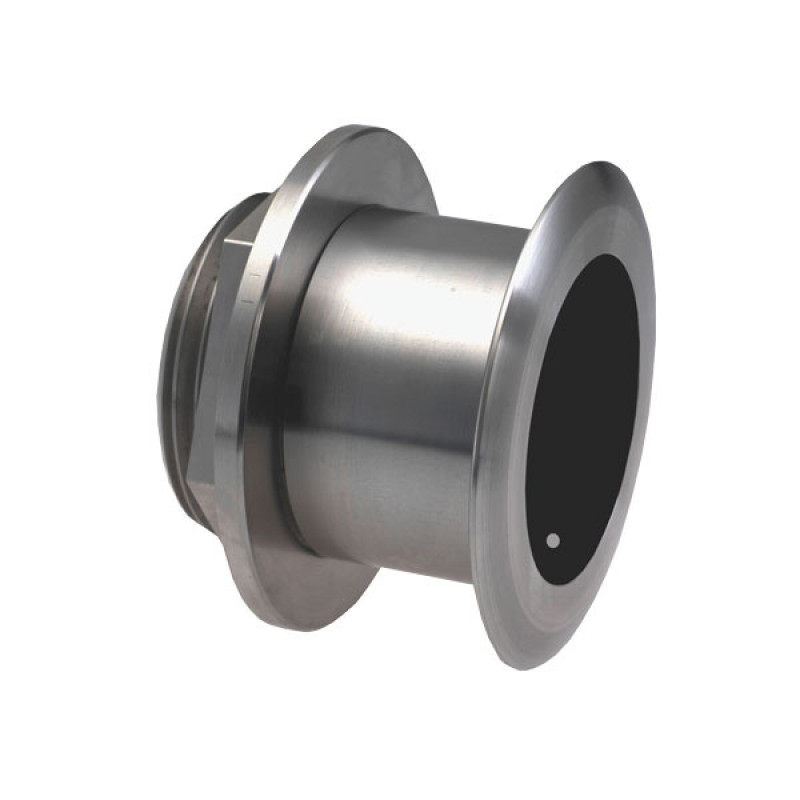

xSonic SS164 Tilted Element Transducer

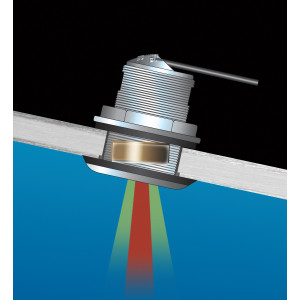

Specifically designed for metal-hull boats, Airmar has taken our innovative Tilted Element™ technology to a higher power. The SS164, 1kW transducer is perfect for fast, tailored tournament-sportfishing vessels that cannot have a High-Performance Fairing. The flush mounted, stainless steel housing protrudes less than 6.35 mm (0.25”) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. 1kW power takes your fish finder to the next power.

Tilted Transducers are available as follows:

  • 0 degrees (for 0° to 14° hull deadrise)
  • 12 degrees (for 8° to 15° hull deadrise)
  • 20 degrees (for 16° to 24° hull deadrise)

Key Features

  • 1 kW power, 50/200 kHz multiple-ceramics
  • Engineered for center-console and trailered boats
  • Low-profile protrusion below the hull
  • No affect on your boats running performance
  • Interfaces to any 600 W or 1 kW echosounder
  • Bronze transducer housing
  • Depth and fast-response water-temperature sensor
  • Boat Size: 8 m to 11 m (25’ to 35’)
  • Optional 0°, 12°, or 20° Tilt

In the Box

xSonic SS164 Transducer with 10m cable

   SS164
Spec
Maximum Depth Range @ 200kHz 152 m to 235 m
Maximum Depth Range @ 50kHz 353 m to 529 m
Weight 2.7 kg (6 lb)
Frequency 50 & 200 kHz
Power Output 1 kW

Write a review

Please login or register to review

Ask a question

xSonic SS164 Tilted Element Transducer

  • Brand: Airmar
  • MPN: See options
  • Model: SS164-XSO
  • Availability: Pre-Order
  • Lead Time: 1-2 weeks
  • £1,232.99

  • Ex VAT:£1,027.49
