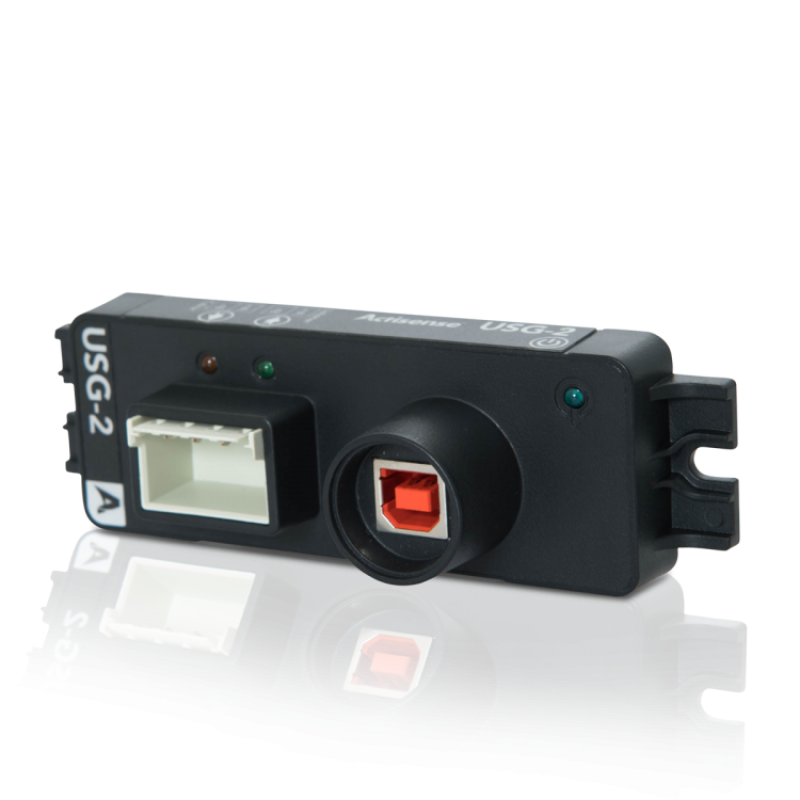

Actisense USG-2 Serial Adaptor Cable

Advanced technology for safe, reliable and simple connection of your NMEA 0183 devices to your PC’s USB port

The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.

Electrical isolation is provided by the ISO-DriveTM output and OPTO-isolated input making installation simple and free from ground loops and far safer connection when compared to standard USB to serial converters.

Multiple LEDs make diagnosing connection issues quick and easy. The blue power LED Illuminates solid blue when the USB driver has successfully loaded and the USG-2 is powered, while a green (receive) LED and an orange (transmit) LED indicate whether data is present.

The pluggable screwless connector makes installation quick and easy, and the specifically designed DIN rail mount option ensures a reliable secure bulkhead mount for the USG-2.

Key Features

  • No firmware which means no configuration needed
  • Isolated inputs and outputs protect PC from damage
  • Compatible with all NMEA 0183 devices
  • Encapsulated electronics make the USG-2 robust for the harsh marine environment
  • High retention USB socket
  • Diagnostic LEDs to aid diagnosis
  • Baud rates from 300 to 230400 bps suit all NMEA 0183 networking bandwidths
  • Bulkhead mount, with optional DIN rail mount kit for quick and easy installation
  • Pluggable screwless connector with locking latch & strain relief

In the Box

USG-2 Isolated USB to Serial Gateway for use with NMEA0183, RS422 & RS232

   USG-2 Data Sheet
   Product Matrix

Write a review

Please login or register to review

Ask a question

Actisense USG-2 Serial Adaptor Cable

  • Brand: Actisense
  • MPN: USG-2
  • Model: USG-2
  • Availability: Pre-Order
  • Lead Time: 1-2 weeks
  • £118.63

  • Ex VAT:£98.86
