Lowrance HALO24 Radar Scanner
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage - up to 48 nautical miles - from one compact 24-inch dome antenna.
Perfect for a wide range of coastal bay boats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance.
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.
Compatible with HDS Gen3, HDS Carbon & HDS Live MDF's
Note: A Heading Sensor is required to support MARPA Tracking and Dual Guard zones.
- 48nm range from a compact 24-inch dome
- Advanced pulse compression technology with beam sharpening

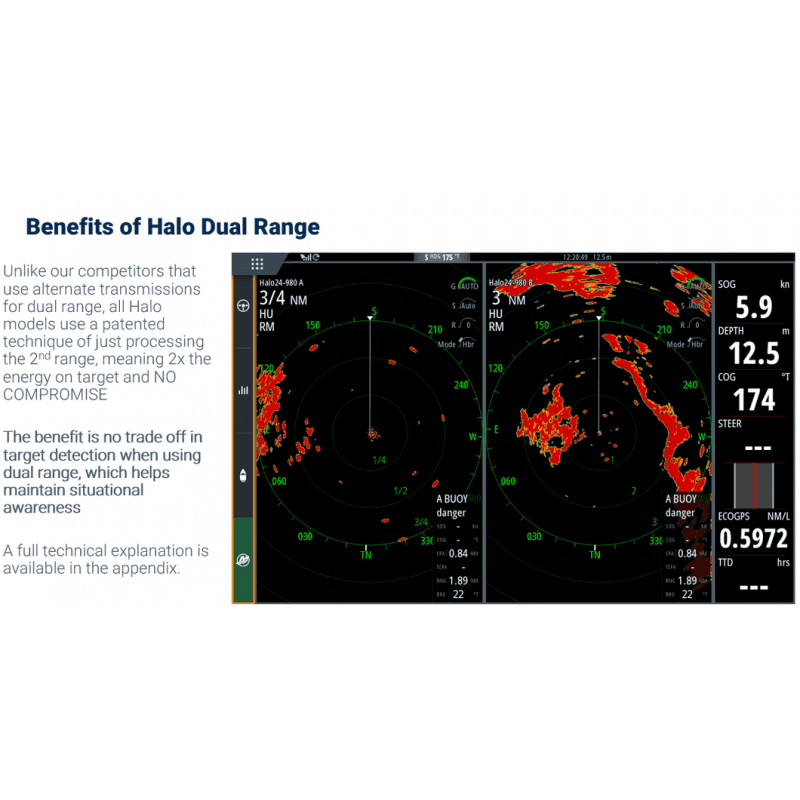

- Simultaneous Dual Range operation sees both near and far
- Ultra-fast 60 RPM operation at ranges up to 1.5nm
- VelocityTrack™ Doppler technology for collision avoidance
- Easy operation with harbour, offshore, weather, and bird modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Ready instantly from standby
In the Box

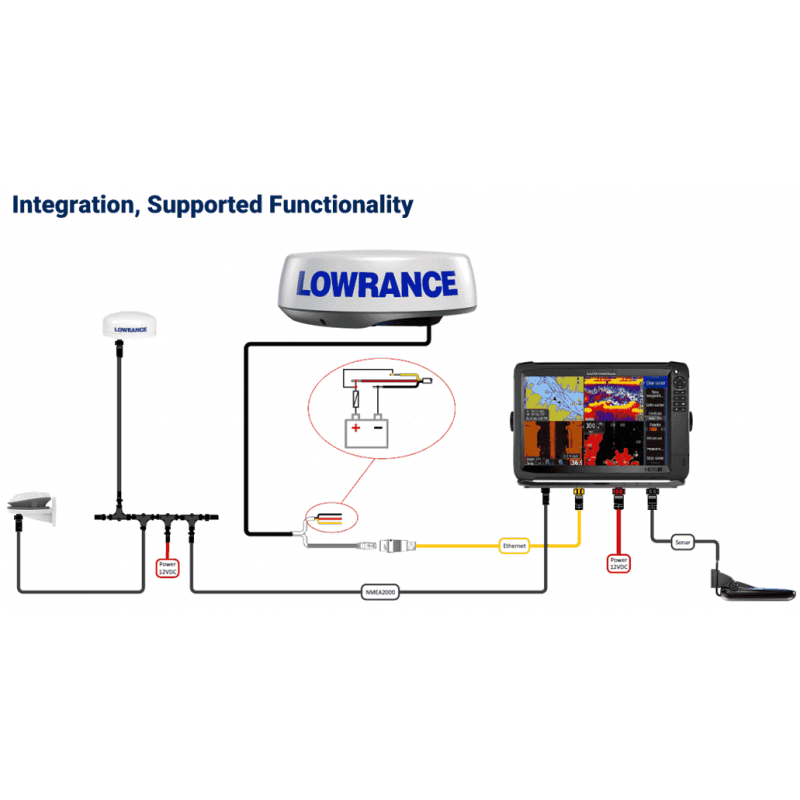

HALO24 with 10m cable, RI12 interface box, ethernet adapter cable and waterproof boot
|Dimensions MM (LxHxD)||610mm x 225mm|
|Supply Voltage||9 - 31.2 VDC (12/24V systems)|
|Weight||6.75 kg (14.9 lbs) without cable|
Lowrance HALO24 Radar Scanner
- Brand: Lowrance
- MPN: 000-14541-001
- Model: HALO24
- Availability: Pre-Order
- Lead Time: 4 weeks
- Ex VAT:£1,912.50
